DX-2012AM Magnetic Moment and Magnetic Declination Measurement System
Hard Magnetic Materials Measurement
Three-dimensional Helmholtz coil and three-component fluxmeter for measuring magnetic moment and magnetic declination of permanent magnet materials.
Product Overview
DX-2012AM Magnetic Moment and Magnetic Declination Measurement System is designed for measuring the magnetic moment and magnetic declination angle of permanent magnets. The system determines magnetic parameters by measuring the magnetic flux components using a Helmholtz coil system and a multi-channel fluxmeter.
By placing the magnet sample on the test platform, the instrument measures the magnetic flux components and calculates the total magnetic moment and the magnetic field deviation angle along the main axis. The system can display values including total magnetic moment M, magnetic declination α, and flux components Øx, Øy and Øz.
This system is widely used for magnetic quality inspection of permanent magnets and magnetic component testing.
Key Features
- Accurate measurement of magnetic moment and magnetic declination angle
- Three-axis Helmholtz coil system for multi-directional magnetic analysis
- Built-in three-channel fluxmeter for simultaneous measurement
- Real-time display of magnetic flux components Øx, Øy and Øz
- High-resolution LCD display interface
- Computer-based data recording and reporting system
- Suitable for permanent magnet testing and quality control
System Components
| Model | Component | Quantity |
|---|---|---|
| DX-2012AM | Magnetic declination test host | 1 set |
| DXHC150 | 3-axis Helmholtz coil | 1 set |
| DX-2012 | Magnetic declination testing software | 1 set |
| M4200 | Lenovo computer | 1 set |
| HP1007 | HP printer | 1 set |

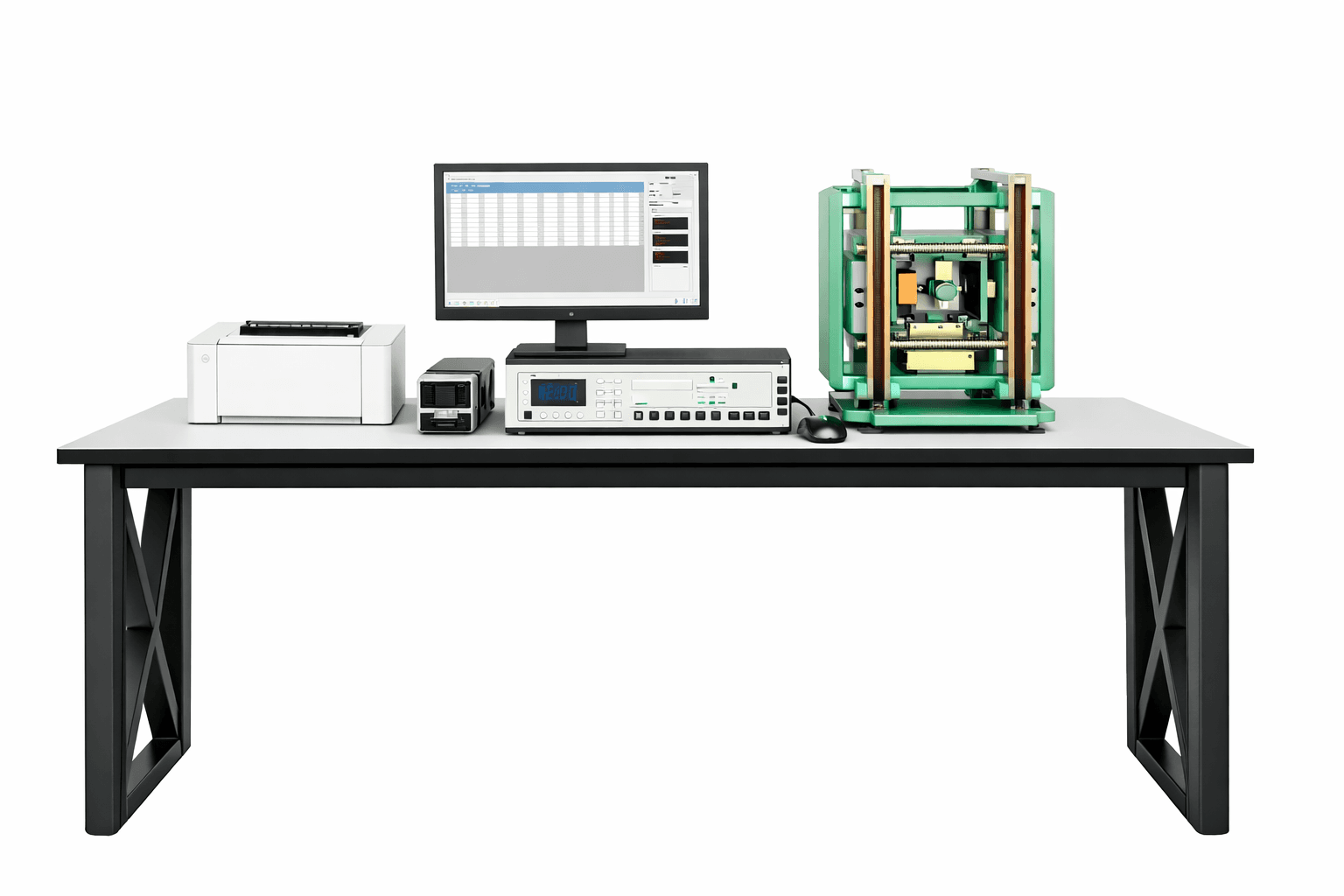

| Nonstandard | Special working platform | 1 set |
Technical Specifications
Fluxmeter Specifications
| Parameter | Specification |
|---|---|
| Fluxmeter Range | 1mWb / 10mWb / 100mWb / 1000mWb |
| Measurement Accuracy | 0.5% |
| Resolution | 0.01% (minimum 0.1 µWb) |
| Input Impedance | 1kΩ / 10kΩ / 100kΩ / 1MΩ |
| Drift | 1 µWb/min (after stabilization) |
Host Functions
- Display magnetic flux values from three-channel fluxmeter
- Display magnetic declination angle θz of the tested sample
- Compare measured declination with preset values for quality inspection
- Stand-alone testing or PC connection via RS232 interface
- Automatic recording of measurement data
Measurement repeatability for magnetic moment M and declination θz is better than 10%.
Helmholtz Coil Specifications
| Parameter | Specification |
|---|---|
| XY Coil Constant | 0.015 Wb·cm/V·s |
| Z Coil Constant | 0.05 Wb·cm/V·s |
| Calibration Accuracy | Better than 0.5% |
| Coil Orthogonality | ±0.2° |
Test Sample Range
- 30 mm³ – 150 mm³ (homogeneous area: 0.3%)
- 30 mm³ – 30 mm³ (homogeneous area: 1.0%)
Measurement Software
DX-2012AM magnetic declination testing software provides automated measurement and data recording functions.
Key features include:
- Automatic recording of sample serial numbers
- Measurement of total magnetic moment M
- Automatic recording of flux values Øx, Øy, Øz
- Automatic calculation of magnetic declination θz
- Software correction of fluxmeter amplification coefficient
- Export of measurement results for reporting and documentation
Applications
- Permanent magnet quality inspection
- Magnetic moment measurement of permanent magnets
- Magnetic declination measurement of magnetized samples
- Research laboratories and academic institutions
- Industrial permanent magnet manufacturing testing
