Vacuum Sintering Furnace
This Vacuum Sintering Furnace is used for vacuum sintering, aging and other treatments of various alloy materials, devices, NdFeB magnetic materials, SmCo magnetic materials, hydrogen storage alloys, and active and refractory metals.
Xiamen Dexing Magnet Tech. Co., Ltd. is a technology-based enterprise specializing in the research and development and manufacturing of vacuum equipment. Over the years, Dexing Vacuum has developed various furnace types with temperatures ranging from 100°C to 2200°C and loading methods ranging from horizontal loading to large vertical bottom loading.
It adopts a unique internal (external) airflow circulation method and a larger vacuum unit, with the characteristics of uniform cooling, fast speed, good furnace temperature uniformity, large exhaust volume, uniform and controllable temperature, high vacuum and no leakage and etc.
The cooling methods are divided into two types:
- Internal circulation (DXRVSX)
- External circulation (DXRVS)
The control system is PLC, and the temperature is controlled by an intelligent temperature controller. The control is accurate and the degree of automation is high. It can realize full-automatic/manual disturbance-free switching and abnormal alarm function. The operation is simple and reliable.
The Technical Parameter of the DXRVS-30G Vacuum Sintering Furnace
| Type | Horizontal, single chamber, internal circulation |
|---|---|
| Maximum load capacity cold state, including tray and tire weight | 30kg |
| Ultimate vacuum degree empty furnace, cold state, after full baking and degassing | 2 × 10⁻³ Pa |
| Pressure rise rate empty furnace, cold state, after full baking and degassing | ≤0.5 Pa/h |
| Pumping rate normal temperature, empty furnace fully baked, main valve open. Timed to 8×10⁻³Pa, excluding oil diffusion vacuum pump preheating time. | ≤40min |
| Maximum design temperature | 1300℃ |
| Working temperature temperature data is based on the value measured by the temperature-controlled thermocouple | 1200℃ |
| Heating rate vacuum, empty furnace up to 1200℃ | ≤75min |
| Temperature uniformity vacuum, empty furnace, 900℃ after insulation, K-type thermocouple measurement | ±5℃ |
| Dimensions of uniform temperature zone W×H×L; the height of the temperature zone includes the thickness of the tray | 200 × 200 × 300 mm |
| Cooling speed empty furnace, filled with inert protective gas, start timing after turning on the air cooling motor; the time and temperature data for cooling from 1200℃ to within 150℃ is based on the value measured by the temperature measuring thermocouple | ≤30min |
| Heating power | 30kVA |
| Total Power | 45kVA |
| Fan working pressure range absolute pressure | 0.085–0.095MPa |
| Equipment maximum design pressure absolute pressure | 0.18MPa |
Main Structure of the Sintering Furnace

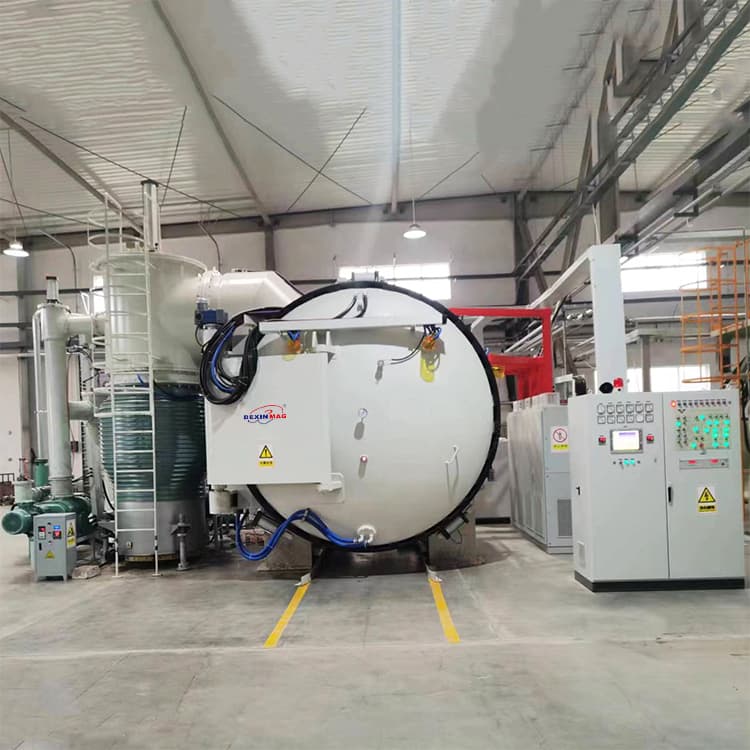

The equipment is horizontal with a single door and internal circulation gas cooling.
It consists of:
More Models of the Vacuum Sintering Furnace
| Model No. | Uniform zone size W×H×L (mm) | Max temperature (℃) | Max vacuum level (Pa) | Pressure rise speed (Pa/h) | Cooling velocity 1100℃–150℃ (min) | Temperature uniformity empty & cold furnace (℃) | Full load weight (Kg) |
|---|---|---|---|---|---|---|---|
| DXRVS-75G | 300 × 300 × 500 | 1300 | 2 × 10⁻³ | 0.5 | ≤20 | ±3 | 75 |
| DXRVS-100G | 400 × 400 × 800 | 1300 | 2 × 10⁻³ | 0.5 | ≤20 | ±3 | 100 |
| DXRVSX-100G | 400 × 400 × 800 | 1300 | 2 × 10⁻³ | 0.5 | ≤20 | ±3 | 100 |
| DXRVS-150G | 450 × 450 × 900 | 1300 | 2 × 10⁻³ | 0.5 | ≤20 | ±3 | 150 |
| DXRVSX-150G | 450 × 450 × 900 | 1300 | 2 × 10⁻³ | 0.5 | ≤20 | ±3 | 150 |
| DXRVS-200G | 450 × 450 × 1100 | 1300 | 2 × 10⁻³ | 0.5 | ≤20 | ±3 | 200 |
| DXRVSX-200G | 450 × 450 × 1100 | 1300 | 2 × 10⁻³ | 0.5 | ≤20 | ±3 | 200 |
| DXRVS-300G | 600 × 600 × 1100 | 1300 | 2 × 10⁻³ | 0.5 | ≤20 | ±3 | 300 |
| DXRVSX-300G | 600 × 600 × 1100 | 1300 | 2 × 10⁻³ | 0.5 | ≤20 | ±3 | 300 |
| DXRVS-500G | 600 × 600 × 1400 | 1300 | 2 × 10⁻³ | 0.5 | ≤20 | ±3 | 500 |
| DXRVSX-500G | 600 × 600 × 1400 | 1300 | 2 × 10⁻³ | 0.5 | ≤20 | ±3 | 500 |
| DXRVS-1TG | 700 × 700 × 1200 | 1300 | 2 × 10⁻³ | 0.5 | ≤20 | ±3 | 1000 |
