Bonded Ferrite Magnetizer Machine
A controlled pulse magnetizing machine designed for bonded ferrite components and custom magnetizing applications.
The DXMM30C10 Magnetizer Machine is designed for magnetizing bonded ferrite components according to the customer's custom product design and magnetizing requirements.
Product Overview
The DXMM30C10 Magnetizer Machine is designed for magnetizing bonded ferrite components according to the customer's custom product design and magnetizing requirements.
The machine provides controlled pulse magnetization with adjustable output voltage and high pulse current capability. It incorporates SCR-based control, real-time output-voltage monitoring, current measurement interfaces, and a safety interlock system for controlled and reliable operation.
Main Technical Parameters
| Parameter | Specification |
|---|---|
| Input Voltage | 110 V, 60 Hz |
| Output Voltage | 0–3000 V |
| Maximum Pulse Current | 7000 A |
| Magnetization Cycle | 2–5 s |
| Electric Capacity | Uses 4 × 25 μF capacitors; available output capacitance configurations: 25 μF, 50 μF, 75 μF, and 100 μF |
| Energy | 360 J |
| Electrical Circuit Control | 3 SCRs (Silicon-Controlled Rectifiers) trigger control circuit |
Features
1. Output Current Measurement
The output current can be measured directly through a BNC connector. The system provides a plug-in fast output cable for connection to the current measurement coil.
2. Dual BNC Current Monitoring Interfaces
The current output monitoring system provides two BNC interfaces:
- One interface with a peak-hold reset circuit
- One direct-output interface
3. Three-SCR Trigger Control
The system uses three SCRs, each with a corresponding trigger input, together with three sets of output leads.
4. Real-Time Output Voltage Monitoring and Control
The output voltage is dynamically monitored and controlled in real time. The required magnetizing voltage can be set through the potentiometer on the machine operation panel.
The voltage setting accuracy is: ±1 V
The actual magnetizing voltage is automatically compared with the set value and fed back for closed-loop control.
5. Safety Interlock
The machine incorporates a door safety-interlock design to help prevent unsafe operation when the door is open.
SCR-Based Pulse Control
The DXMM30C10 uses three SCRs (Silicon-Controlled Rectifiers) as part of its pulse control circuit. The system provides controlled triggering and output delivery for magnetizing operations.
- 3 SCRs
- 3 trigger inputs
- 3 sets of output leads
Adjustable Output Voltage
Output voltage: 0–3000 V
The required magnetizing voltage is set using the potentiometer on the machine operation panel.
Setting accuracy: ±1 V
The actual magnetizing voltage is dynamically monitored, compared with the set value, and fed back for closed-loop control.
Current Measurement and Monitoring
- Maximum pulse current: 7000 A
- Direct output current measurement through BNC connector
- Plug-in fast output cable for current measurement coil
- Two BNC monitoring interfaces
- Peak-hold reset interface
- Direct-output interface
Application
The DXMM30C10 is intended for magnetizing bonded ferrite components according to customer-specific product designs.
- Bonded ferrite magnetization
- Custom product designs
- Custom magnetizing requirements
Machine Details

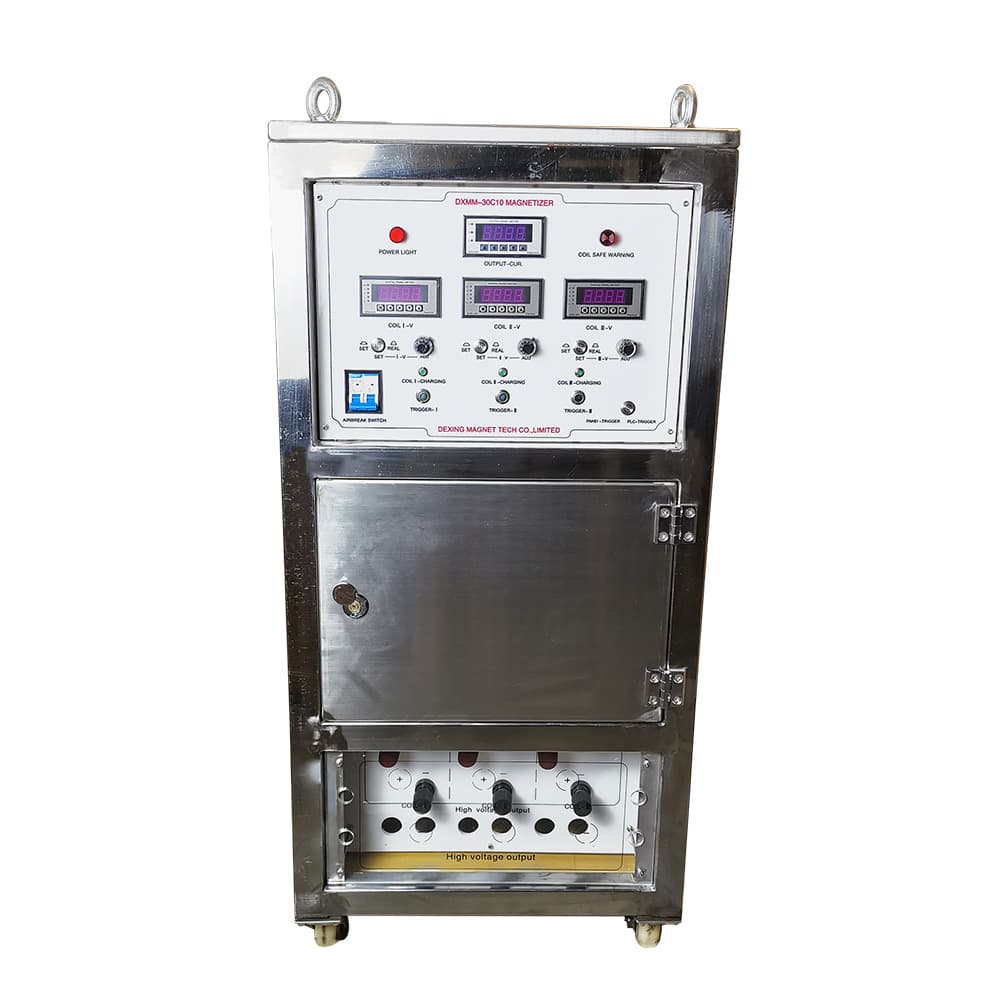

1. DXMM30C10 Front Panel

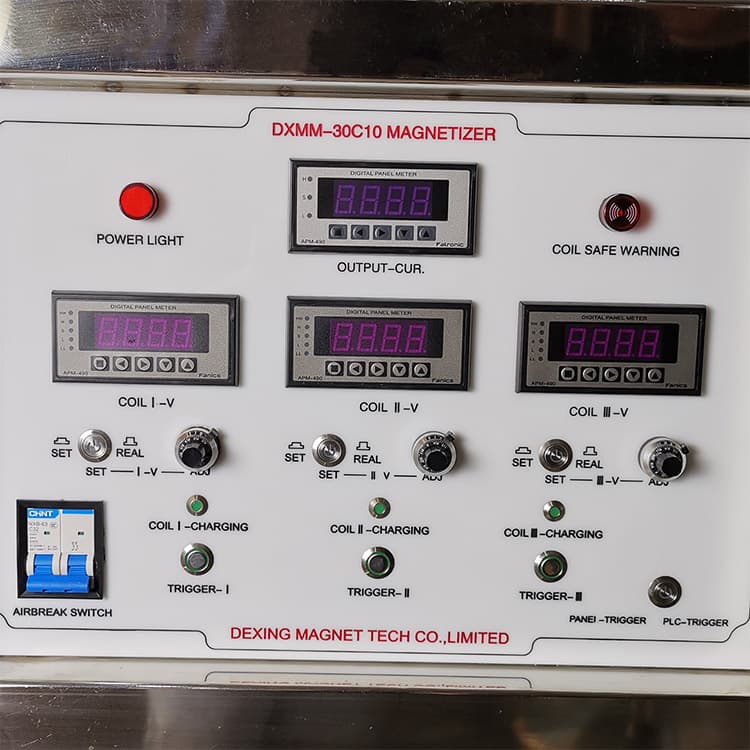

2. Upper Front Panel

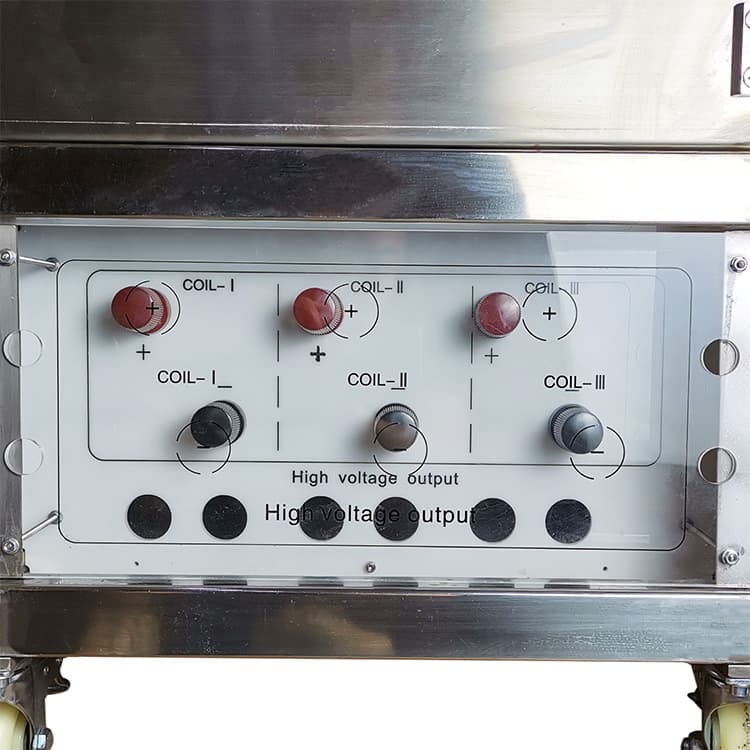

3. Lower Front Panel

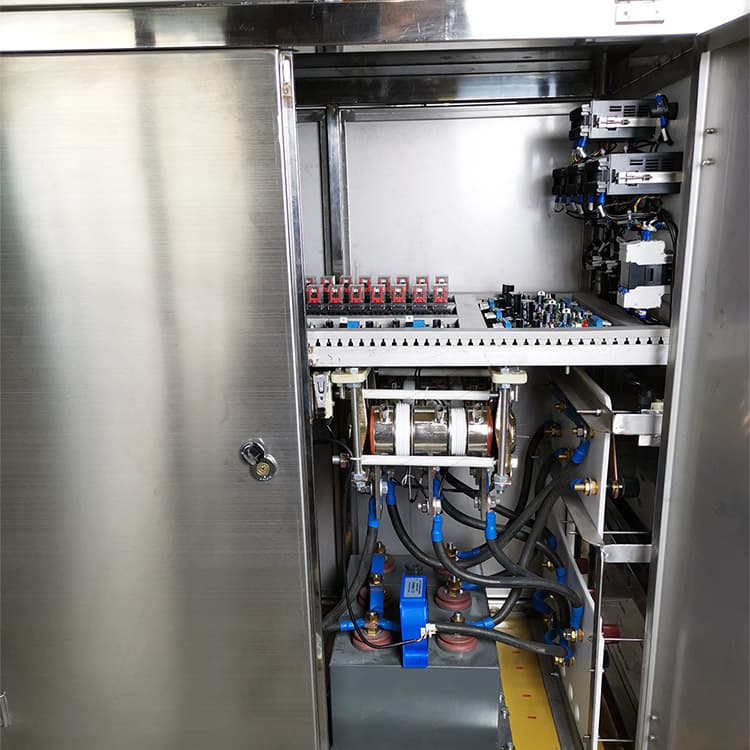

4. Internal Circuit

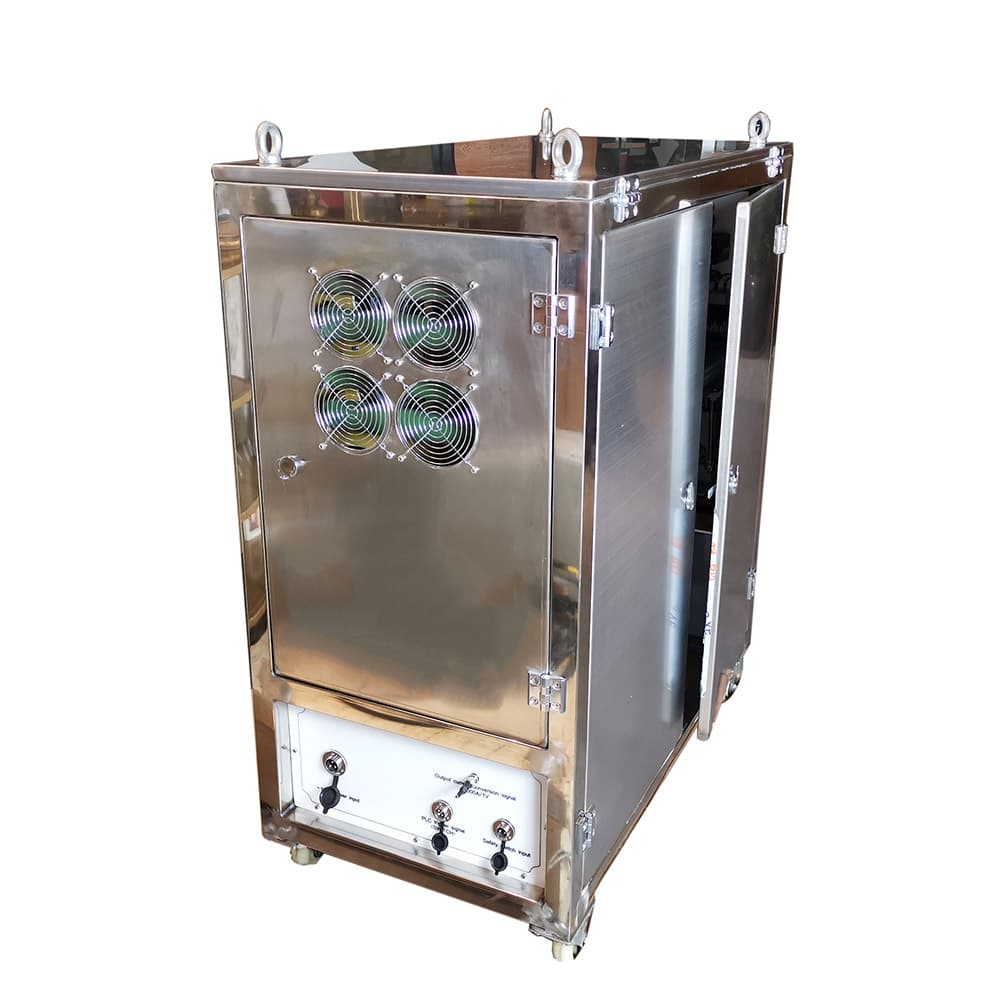

5. Back Panel

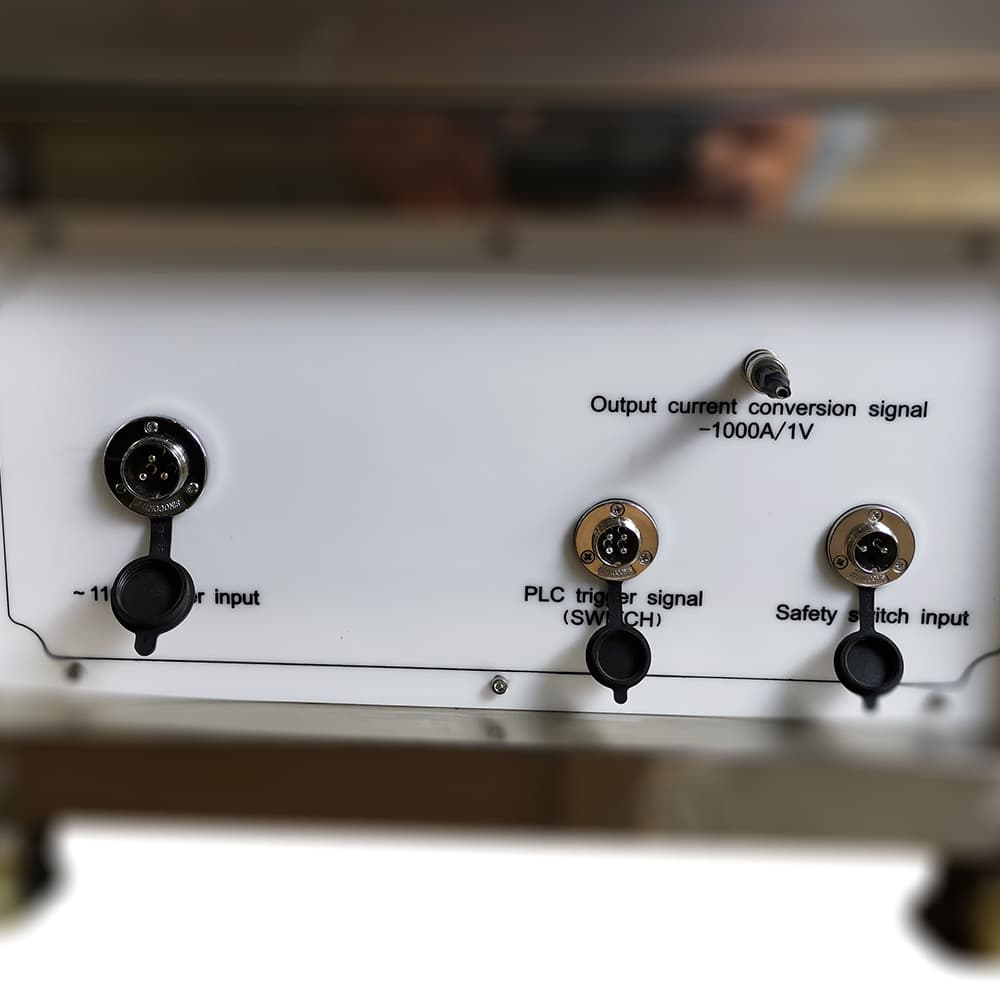

6. Lower Back Panel
