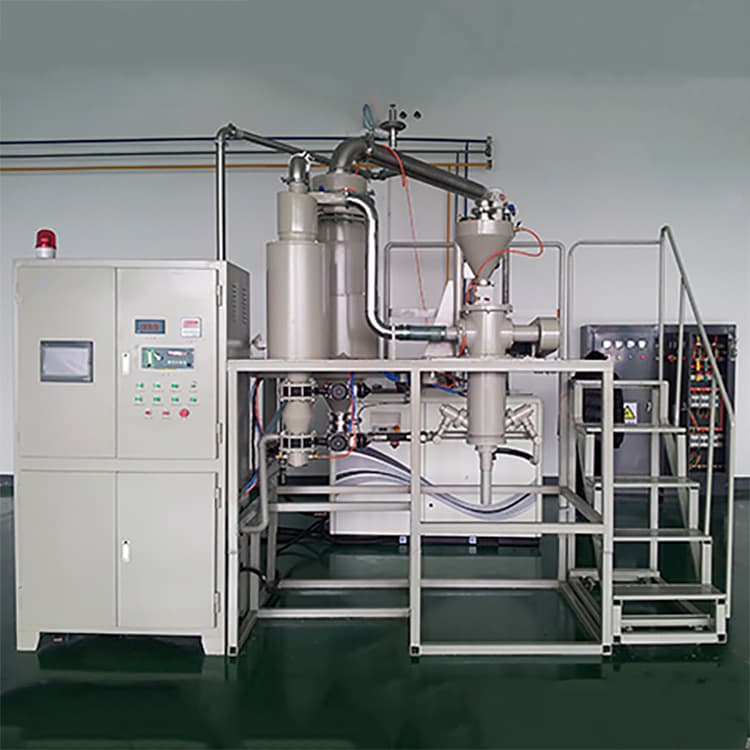

Jet Milling Equipment
Jet Mill comprises the nitrogen compression system, oxygen filtering system, crushing system, grading system collection system, adding, discharging system, nitrogen purity test supplement system, nitrogen system and electrical control system. Easy-to-oxidize raw materials and flammable and explosive materials processing have been widely used in metal powder.
Inert gas protection crushing and grading machine is in the flammable, explosive, easy to oxidize materials for crushing, adding inert gas (oxygen, oxygen, carbon dioxide, etc.) as a medium to achieve a closed-circuit crushing.
Core Features
- Capable of processing materials with Mohs hardness scale 1-10 and mixing/crushing multiple materials.
- Oxygen-isolated with selectable inert gas purity based on product characteristics, enabling closed-loop use with minimal loss and cost reduction.
- Precise oxygen monitoring during processing, controlling oxygen levels below 1PPM as needed. Automatically supplements inert gases like nitrogen to maintain pressure balance within safety standards.
- Uniform material feeding with scientifically calculated bend angles and component shapes in feed/discharge pipes, ensuring no dead zones and preventing powder accumulation.
- Equipped with cooling devices on operational pipes to reduce safety risks during extended use or in high-temperature environments.
- Equipped with explosion vents along the piping system to minimize damage from internal pressure or concentration-induced explosions.
- Fully enclosed negative-pressure operation with pulsed automatic dust removal and high-precision imported filters for efficient dust collection.
- Fully automated control system enabling one-button start/stop and easy operation. Can be remotely controlled when connected to the central control system.
Technical specification
| Item | Technical index |
|---|---|
| 1、Output | 10~20kg/h |
| 2、Powder size | 3-5 microns continuously adjustable, normal distribution |
| 3、gas consumption | ≤5Nm³/h |
| 4、Powder output | ≥99.5% |
| 5、Oxygen content in jet milling system | ＜10ppm（Oxygen content of supply gas is less than 10ppm）After stable grinding |
| 6、Compressor displacement | 6.5m³/min |
| 7、Compressor maximum exhaust pressure | 0.70MPa（The medium is nitrogen） |
| 8、Outlet temperature of the refrigeration dryer | 15-20℃ |
| 9、Feeding particle size | ＜0.5mm |
Models of the jet milling:
| Model | Feed Size | Product Size | Capacity | Power |
|---|---|---|---|---|
| DX-DBC40 | ≤3 mm | 0.5-75μm | 5-20 kg/h | 12 kw |
| DX-DBC110 | ≤5 mm | 0.5-75μm | 20-100 kg/h | 26 kw |
| DX-DBC185 | ≤5 mm | 0.5-75μm | 50-200 kg/h | 45 kw |
| DX-DBC370 | ≤5 mm | 0.5-75μm | 60-300 kg/h | 81 kw |
| DX-DBC550 | ≤5 mm | 0.5-75μm | 200-1000 kg/h | 115 kw |
| DX-DBC900 | ≤5 mm | 0.5-75μm | 300-3000 kg/h | 173 kw |
| DX-DBC1320 | ≤5 mm | 0.5-75μm | 600-5000 kg/h | 243 kw |
