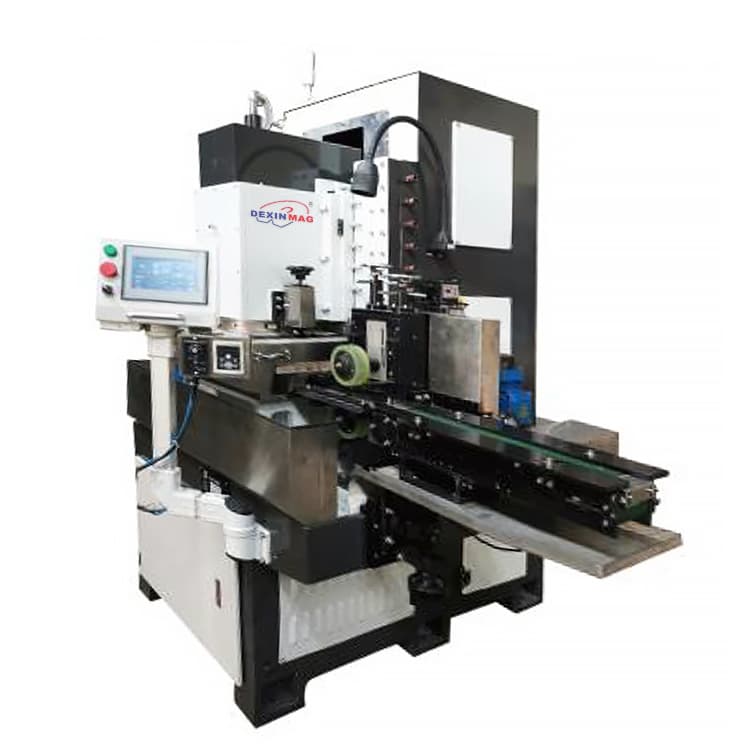

DXML35D-SK CNC Vertical Single-End Face Grinding Machine
DXML35D-SK CNC Vertical Single-End Face Grinding Machine is specifically developed for two-ended products that require multi-line tool alignment. It performs single-sided grinding on the material's hairy surface, using the cut surface as a reference. This solves the issue of perpendicularity deviation that occurs when both the cut and hairy surfaces are ground simultaneously.
The DXML35D-SK CNC vertical single-end face grinding machine is designed to fully utilize and conserve edge materials. It is capable of rough grinding single-sided blanks while also accommodating precision grinding needs.
Key Features
1. Adjustable Grinding Head Angle
The grinding head on the grinding wheel is mounted on a rail seat, allowing for adjustment to any open angle.
2. Stable and Convenient Grinding Head Adjustment
The grinding head's lifting mechanism employs a ball screw combined with a guide rail, with a touchscreen display for easy adjustment. This ensures stability during grinding.
3. Table Limit Adjustment Based on Product Width
The worktable's limit can be adjusted according to the width of the product.
4. Convenient Feed Rubber Wheel Adjustment
The distance between the feed rubber wheels can be easily adjusted by rotating a handwheel.
5. Independent and Adjustable Conveyor Belt
The conveyor belt has an independent drive with adjustable speed. The height of the conveyor belt can also be adjusted, making operation convenient and simple.
6. Embedded Electrical Cabinet for Space Savings
The electrical cabinet is embedded within the machine base, eliminating the need for an external cable for a separate electrical box. This saves space and enhances the equipment's aesthetics.
7. PLC Control with Touchscreen Display
The use of PLC control and a touchscreen display simplifies the control circuit and facilitates circuit maintenance.
8. Circuit Fault Detection Function
The human-machine interface (touchscreen) can promptly display fault causes and shut down the machine in case of a circuit fault.
9. Motor Safety Self-Locking Function
This function effectively protects the main motor from overcurrent due to misoperation.
10. Improved Overall Appearance
The machine adopts a black-and-gray base with white internal components, providing excellent visual effects and a high-end, elegant appearance.
Application & Value
The DXML35D-SK CNC Vertical Single-End Face Grinding Machine is intended for single-sided grinding, particularly on two-ended products requiring multi-line tool alignment. It is designed to fully utilize and conserve edge materials while being capable of both rough grinding of single-sided blanks and precision grinding.
Technical Specifications
| Parameters | Item | DXML35D-SK |
|---|---|---|
| Grinding Wheel Speed | (r/min) | 1638 |
| Main Motor Power | (KW) | 7.5 |
| Glue Wheel Feeding Motor Power | (KW) | 0.75 |
| Conveyor Belt Motor Power | (KW) | 0.12 |
| Glue Wheel Feeding Speed | (m/min) | 1~2.5 (Determined by grinding amount) |
| Conveyor Belt Feeding Speed | (m/min) | ≤6 (Determined by grinding amount) |
| Grinding Workpiece Accuracy Tolerance | (mm) | ±0.01 (Fine grinding) |
| Grinding Workpiece Parallelism Tolerance | (mm) | ±0.01 (Fine grinding) |
| Main Grinding Wheel Lifting Distance | (mm) | 100 |
| Product Finish | 8~9 (Adjustable by changing grinding wheel grit size) | |
| Grinding Workpiece Thickness | (mm) | 1.5~40 |
| Grinding Square Plate Width | (mm) | ≤80 |
| Grinding Amount | (mm) | ≤0.20 (Determined by product area) |
| Grinding Wheel Diameter | (mm) | 350 |
| Grinding Wheel Type | Resin bonded diamond wheel 60#~200# | |
| Coolant | Dedicated grinding fluid | |
| Operation Interface | Human-machine interface | |
| Machine Weight | (kg) | 2200 |
| Machine Dimensions | (mm) | 1300 × 1250 × 2300 |
