Functional Material Measurement
Impedance Analyzer

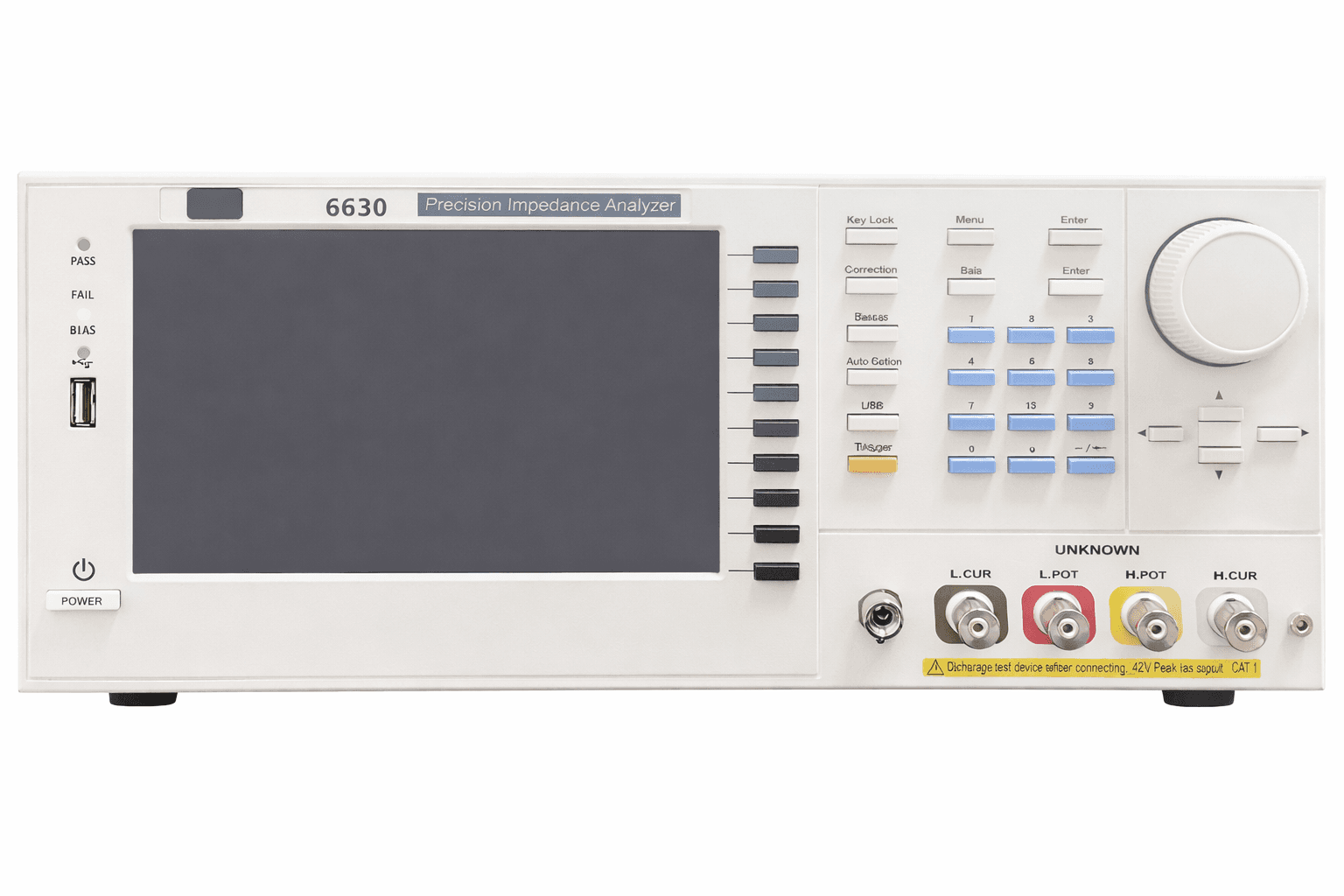

A precision impedance analyzer is an electronic test instrument used to measure the variation of complex electrical impedance with frequency.
Product Overview
A precision impedance analyzer is an electronic test instrument used to measure the variation of complex electrical impedance with frequency. Impedance is an important parameter for characterising electronic components, electronic circuits and material properties.
Impedance analysis can also be applied to dielectric materials such as biological tissues, food materials and geological samples, enabling the study of their electrical and dielectric behaviour over a wide frequency range.
Principle
An impedance analyzer measures the change of complex electrical impedance with frequency. It works by measuring the current and voltage of a device simultaneously during a frequency sweep through phase-sensitive detection.
The main parameters of an impedance analyzer include frequency range, impedance range, impedance amplitude accuracy and phase accuracy. Additional features include measurement speed and the ability to apply voltage or current bias during testing.
The impedance measured includes impedance amplitude, real part, imaginary part and the phase difference between voltage and current. Based on the equivalent circuit model, parameters such as conductance, inductance and capacitance can be calculated and displayed.
Features
- Wide signal source frequency range – DC to 10Hz – 1 / 3 / 5 / 10 / 20 / 30 / 50 MHz.
- High precision measurement – basic impedance measurement accuracy: ±0.05%.
- ALC function – Automatic Level Control (ALC) for stable test signal levels.
- Output impedance switching – 25Ω / 100Ω selectable for fixture matching.
- Fixture compatibility – supports liquid fixtures, dielectric constant fixtures and other test fixtures.
- Display capability – up to four component parameters displayed simultaneously; inductance value and DCR value can be displayed at the same time.
- Correction functions – open circuit correction, short circuit correction and load correction.
- Ultra-fast measurement – measurement speed <3ms.
- Classification function – comparator function and Handler interface BIN classification.
- Communication interfaces – RS-232, GPIB, Handler, LAN and USB Host / Device.
- Suitable test fields – laboratory testing and research and development.
- Optional operating software – measurement data collection and analysis.
Specifications
| Item | Specification |
|---|---|
| Measuring Mode | Meter mode, multi-step test |
| Equivalent Circuit | Series, Parallel |
| Calibration | Open circuit, short circuit, load |
| Line Length Compensation | 0 / 0.5 / 1 / 2 m |
| Multi-step Test | 50 groups, 15 steps per group |
| BIN Classification | 9 levels maximum |
| Comparator | ABS, ΔABS, Δ%, OFF |
| Internal Storage | 100 groups of LCR meter test settings, 50 groups multi-step test settings |
| USB Host Storage | LCR meter files, multi-step test files, BMP images |
| Trigger Test Mode | Automatic, Manual, RS-232, GPIB, Handler |
| Communication Mode | RS-232, GPIB, Handler, LAN, USB Host/Device |
| Power Supply | 90–264Vac, 47–63Hz, max power 30W |
| Display | 7-inch TFT color display (800×480) |
| Operating Environment | Temperature 10–40℃, Humidity 20–90%RH |
| Dimensions | 336 × 147 × 340 mm |
| Weight | 3 kg |
Model Parameters
| Model | DX6630-1 | DX6630-3 | DX6630-5 | DX6630-10 | DX6630-20 | DX6630-30 |
|---|---|---|---|---|---|---|
| Test Frequency | 10Hz–1MHz | 10Hz–3MHz | 10Hz–5MHz | 10Hz–10MHz | 10Hz–20MHz | 10Hz–30MHz |
| Measurement Frequency Resolution | Six digits | |||||
| Frequency Output Accuracy | 7ppm ±0.01% | |||||
| Basic Accuracy | ±0.05% | |||||
| Test Signal Voltage Range | 10mV – 2Vrms | |||||
| Minimum Voltage Resolution | 1mV | |||||
| AC Voltage Accuracy | ALC OFF: 10% × set voltage ±2mV; ALC ON: 6% × set voltage ±2mV | |||||
| Test Signal Current Range | 200µA – 20mArms | |||||
| Current Minimum Resolution | 10µA | |||||
| AC Current Accuracy | ALC OFF: 10% × set current ±20µA | |||||
| DC Test Signal | 1V fixed | |||||
| Output Impedance | 25Ω / 100Ω switchable | |||||
| Measurement Time | <3ms | |||||
| Measurement Parameters / Range | |Z|: 0.000m – 9999.99M; R, X: ±0.000mΩ – 9999.99MΩ; |Y|: 0.00000µS – 999.999kS; G, B: ±0.00000µS – 999.999kS; θ(rad): ±0.00000 – 3.14159; θ(°): ±0.000° – 180.000°; Cs, Cp: ±0.00000pF – 9999.99F; Ls, Lp: ±0.00nH – 9999.99kH; D: 0.00000 – 9999.99; Q: 0.00 – 9999.99; Δ: ±0.00% – 9999.99%; Rdc: 0.00mΩ – 99.9999MΩ; εr', εr'': 0 – 100000; μr', μr'': 0 – 100000. | |||||
