HT Solutions

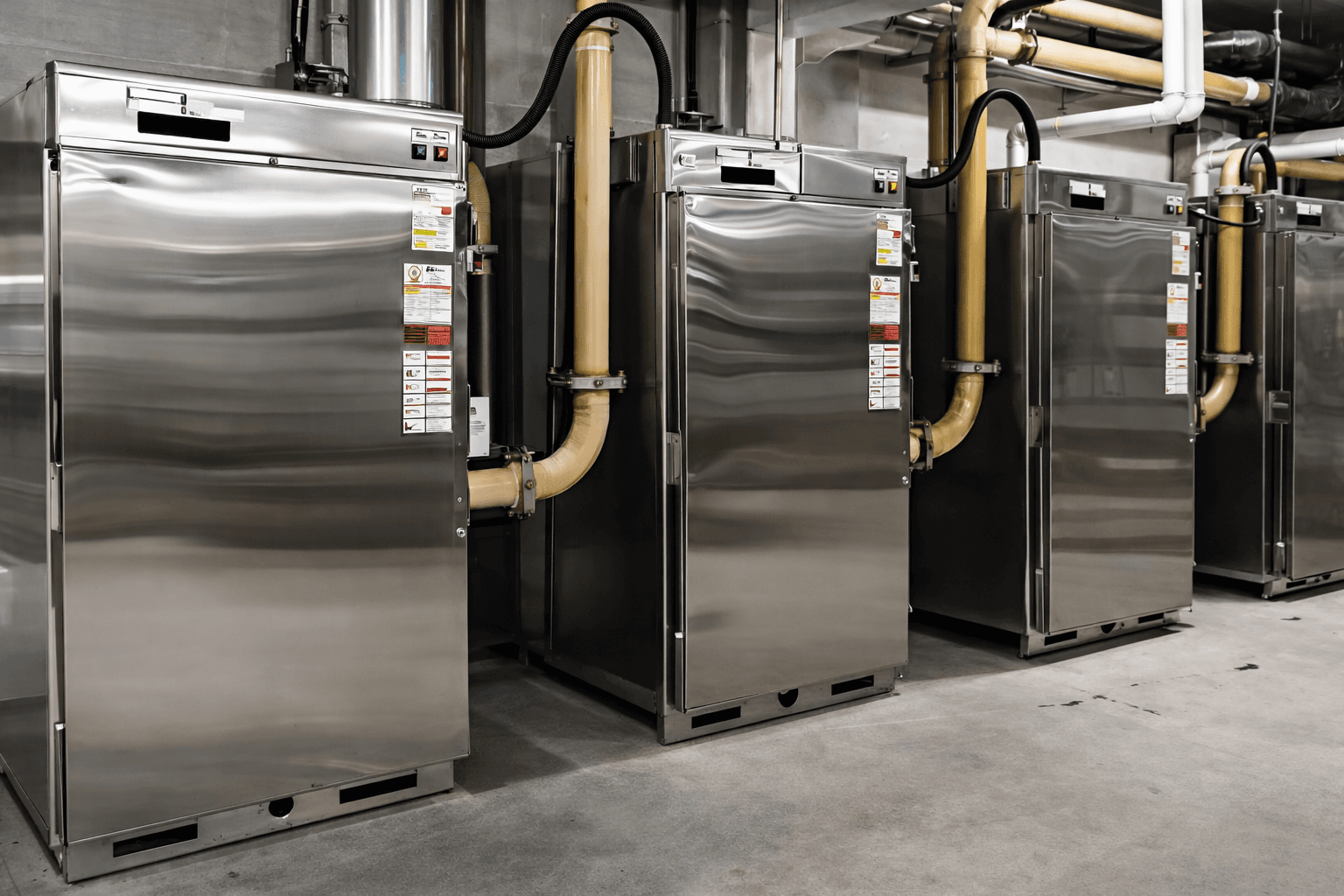

Industrial Ovens
Laboratory and Industrial ovens Series offered a range of precision electric ovens. They are designed for low temperature thermal treatment such as drying, heating and thermal testing in an air-flow assisted environment.
Our ovens are available with optional NABL calibration of the temperature controller and thermocouple as a system or also with a 3-point or 5-point thermal survey of the chamber volume.
Standard Features
- Capacity – 4 Liter to 14000 Liters
- Temperature uniformity throughout the chamber with forced air convection
- Temperature range up to 500°C
- Digital PID temperature controller
- Safety controller for over-temperature protection
- Tubular Heaters/Nichrome are used as a heating element inside the oven for better uniformity

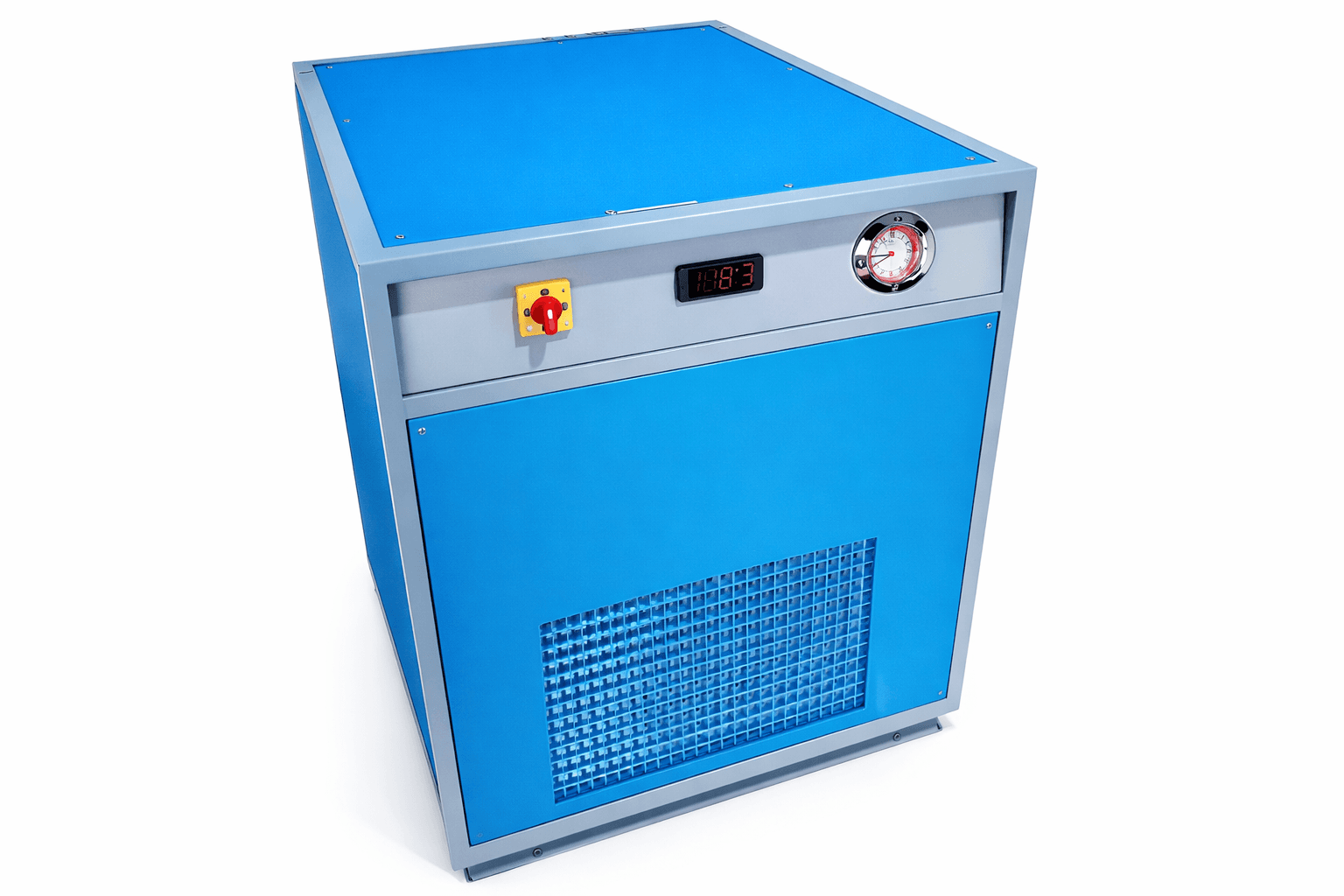

Refrigerated Air Dryers
Microwave furnaces represent a system that combines free radiating heating elements with a microwaves field. Key advantages include greater energy efficiency, faster sample heating, more uniform heating and improves material properties.
A refrigerated air dryer removes moisture from compressed air by cooling it, condensing the water, and draining it out. This prevents rust, corrosion, and product damage, ensuring clean, dry air for applications in pharma, food, electronics, automotive, paint shops, packaging, and general manufacturing.
With capacities from 15 CFM to 2000+ CFM and pressures up to 35 Bar, they offer reliable dew point control (+3 °C to +10 °C), use eco-friendly refrigerants, and feature automatic drains for low-maintenance, efficient operation.
| Parameter | Average Range |
|---|---|
| Flow Rate | 15 CFM – 2000 CFM |
| Dew Point | +3 °C to +10 °C |
| Pressure Capacity | 7–35 Bar |
| Inlet Temp Tolerance | Up to 45 °C |
| Power Supply | 220 V / 415 V |
| Refrigerants | R-134a, R-410a, R-22 |
| Compressor Type | Scroll / Reciprocating |
| Control System | Digital / PID |
| Body Material | Mild Steel (SS optional) |

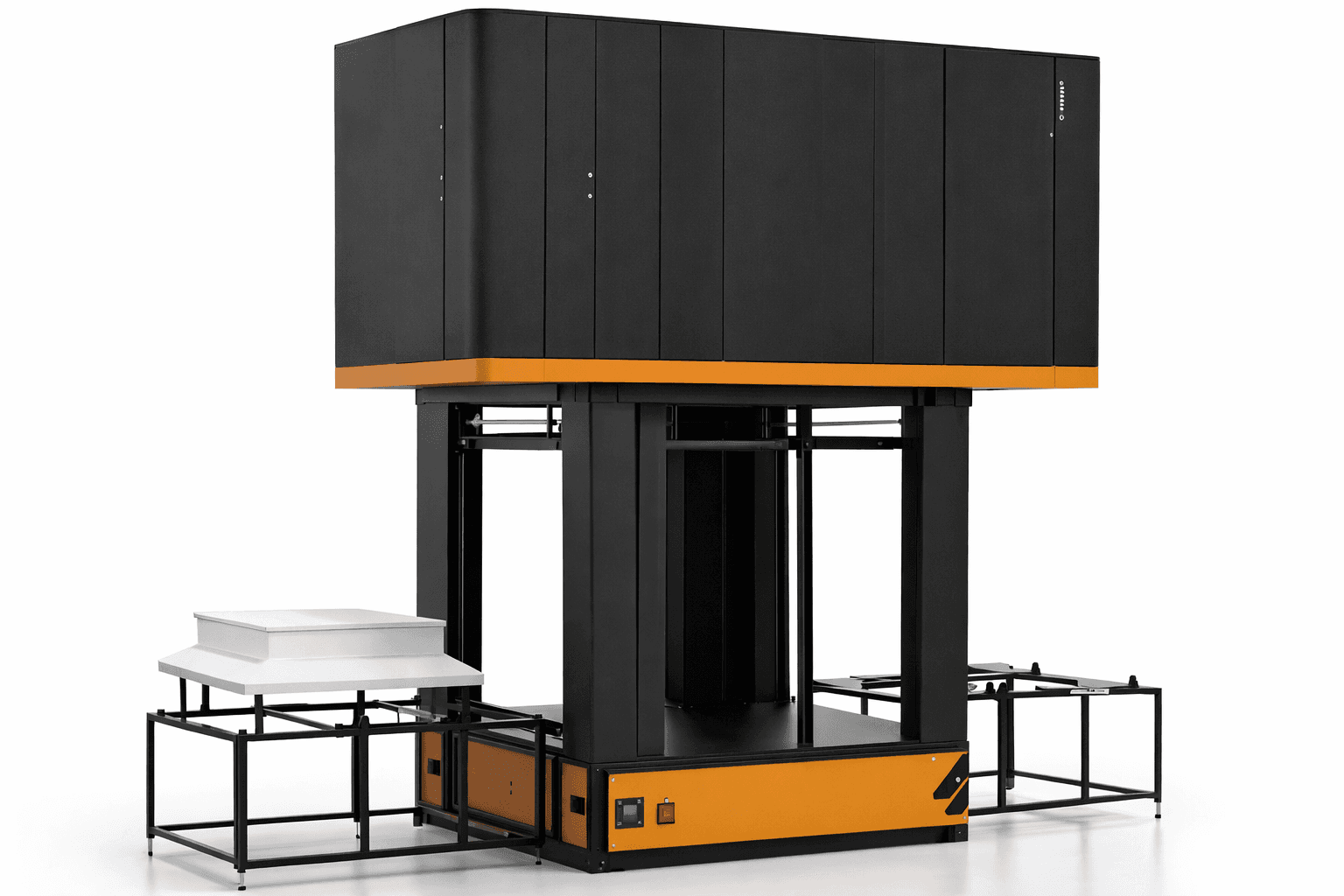

Industrial Furnaces
Industrial Bottom Loading Furnace is suitable for 1600°C as well as 1800°C application. The Industrial Bottom Loading Furnace is a kind of user friendly operating system that comes with smooth bottom lifting arrangement.
The Industrial Bottom Loading is widely used for firing and sintering of advanced ceramics and high temperature glass melting application.
Industrial Bottom Loading Furnace offers high temperature accuracy in a range of ±1°C
| Maximum Temperature | 1200 /1400°C/1600°C/1800°C |
| Insulation | Multiple Layers of High Temperature Fiber Insulation Boards Ensure Minimum Heat Loss |
| Bottom Lifting Arrangement | Bottom Lifting Plate Fitted with Dc Motor Ensures Smooth Lifting & Lowering |
| Bottom Lifting Arrangement | Bottom Lifting Plate Fitted with Dc Motor Ensures Smooth Lifting & Lowering |
