Wide variable temperature range
Supports 65 K–800 K operation with precise control, covering a broad spectrum of experimental requirements.
Cryogenic Systems
Liquid Nitrogen Cryostat
Wide 65 K–800 K temperature range, fast cooling and stable vacuum environment for optical, electrical and magnetic experiments.
Product Overview
Dexinmag Liquid Nitrogen Cryostat provides a wide temperature range (65 K–800 K), high efficiency, fast cooling speed and a stable experimental environment, making it a preferred low‑temperature platform for many scientific research experiments.
Based on the steady‑state bubble principle, liquid nitrogen is stored in the cryostat tank. By adjusting the cone air plug clearance and changing the boiling condition of the gas–liquid interface, the heat leakage of the constant temperature block is stabilised while precise heater control enables rapid temperature change.
The system offers high cost‑effectiveness, compact structure and strong expandability for integration into optical, electrical, magnetic and thermal measurement systems.
Key Features
Capabilities that enable precise, repeatable measurements for demanding engineering environments.
High efficiency and fast cooling
Efficient thermal design and liquid nitrogen management enable rapid cooldown and stable operation.
Stable vacuum environment
Low‑temperature adsorbent and optimised vacuum interlayer extend liquid nitrogen usage and measurement stability.
Flexible experimental configurations
Supports multiple sample holders, optical windows and electrical interfaces for diverse experiment types.
Technical Specifications
Key Cryostat Parameters
| Temperature Range | 65 K–500 K (extendable to 800 K) |
|---|---|
| Ultimate Vacuum | 10⁻⁴ Pa |
| Liquid Nitrogen Capacity | 400 ml |
| Temperature Accuracy | ±0.1 K |
Applications
Variable temperature testing for materials research
Optical, electrical, magnetic and thermal measurements
Magnetic field testing and optical experiments
Laboratory cryogenic platforms for R&D

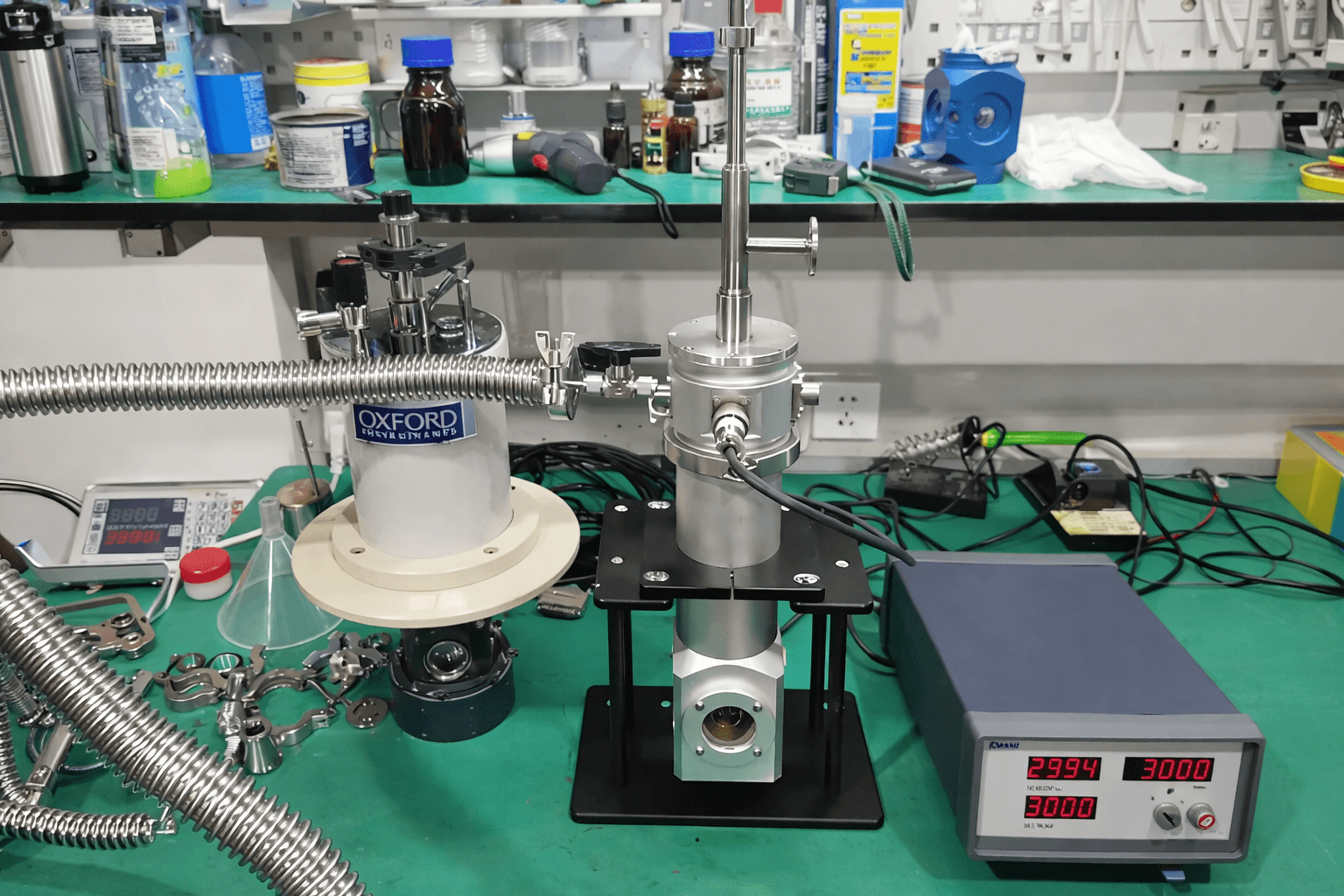

Product Image Gallery
Product Overview
Dexinmag Liquid Nitrogen Cryostat provides a wide temperature range (65K–800K), high efficiency, fast cooling speed and a stable experimental environment. It has become a preferred low-temperature equipment choice for many scientific research experiments.
The system is based on the steady-state bubble principle. Liquid nitrogen is stored in the cryostat tank, and by adjusting the cone air plug clearance and changing the boiling condition of the gas–liquid interface, the heat leakage of the constant temperature block can be stabilised.
The heating power is adjusted by the temperature controller so that the sample stage can change temperature rapidly between 65K and 800K and stabilise precisely at the set temperature. Main advantages include high cost-effectiveness, compact structure and strong expandability.
Key Features
- Wide temperature range (65K – 800K).
- High efficiency and fast cooling speed.
- Stable vacuum sample environment.
- Long vacuum holding time using low-temperature adsorbent.
- PT100 platinum temperature sensor with high stability.
- Multiple experimental configuration options.
- Easy liquid nitrogen filling without pumps or compressors.
- Quick optical and electrical sample installation.
- Customisable cryostat configurations for different experiments.
Performance and Characteristics
- Wide temperature range (65K ~ 800K).
- Stable vacuum environment for samples.
- Vacuum interlayer with low-temperature adsorbent extends liquid nitrogen usage time.
- High precision PT100 platinum temperature sensor.
- Multiple optional configurations for different experiments.
- Easy operation without pumps or compressors.

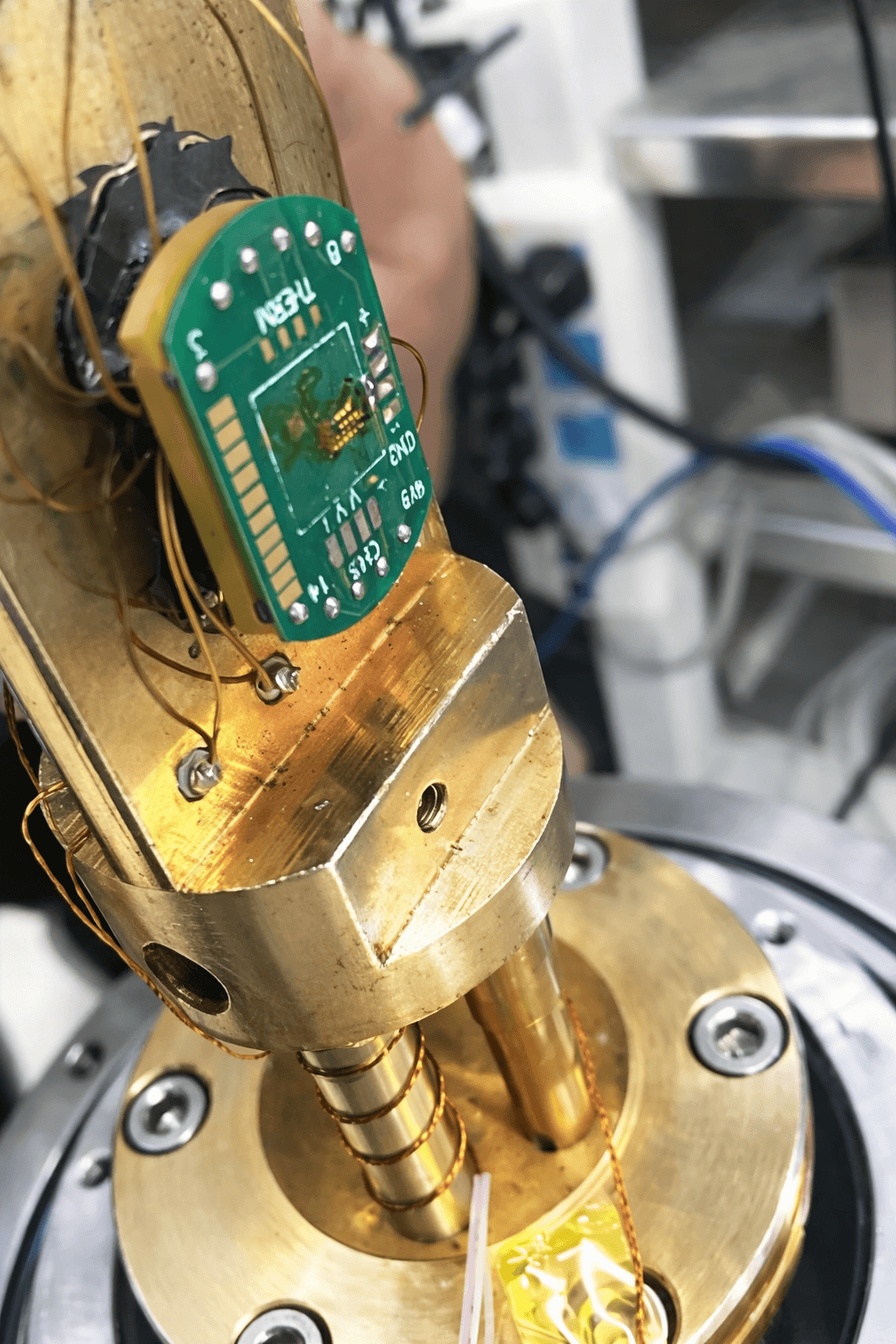

- Optical and electrical sample holder options.
- Custom design for optical, electrical, magnetic and thermal measurement experiments.
Parameters of Dexinmag Series Liquid Nitrogen Cryostat
| No. | DXNC15 | DXNC20 | DXNC30 |
|---|---|---|---|
| Liquid nitrogen storage capacity | 400 ml | ||
| Ultimate vacuum | 10⁻⁴ Pa | ||

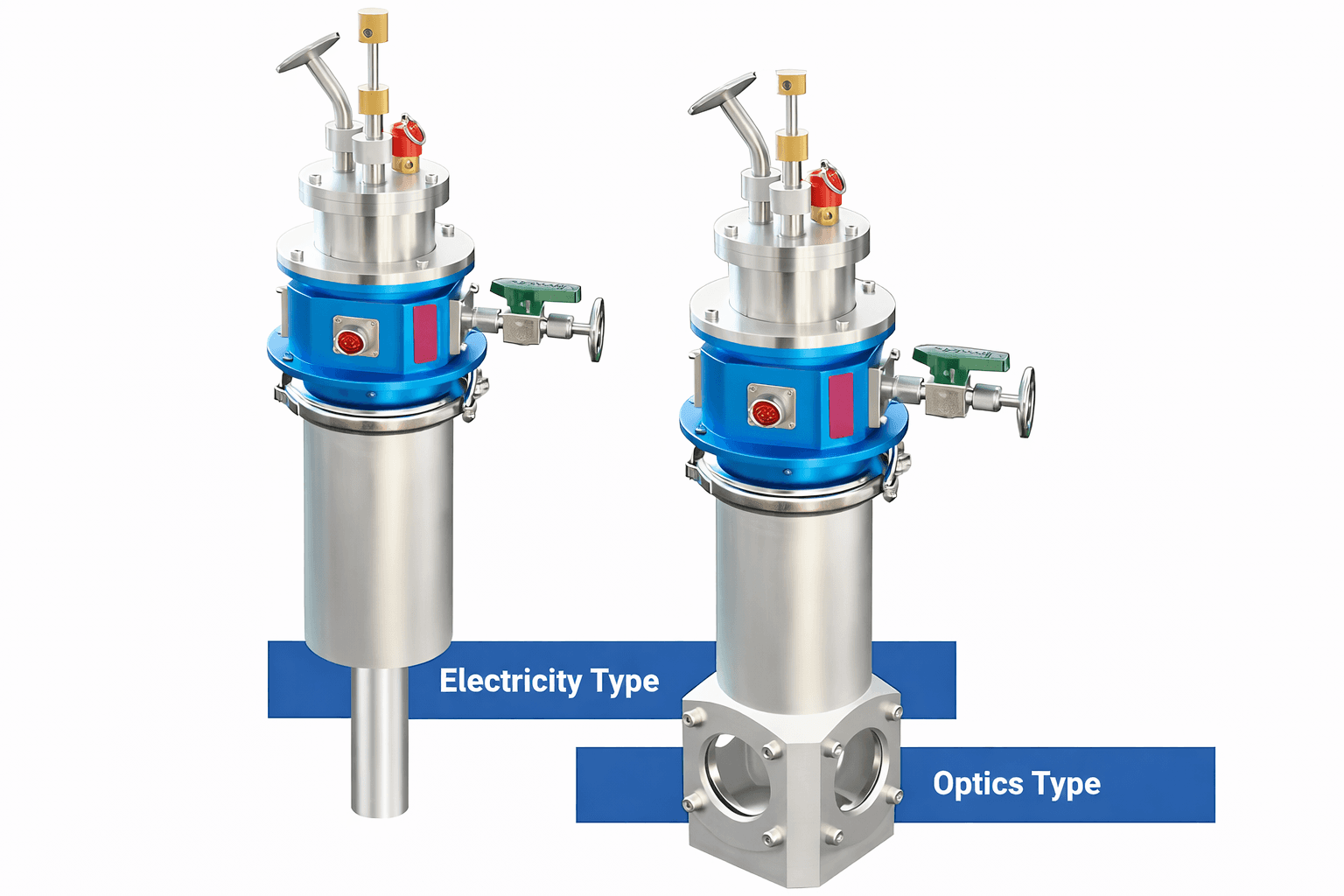

| Optical window | No | No | 2–5, Ø40mm × 3mm |
| Test sample quantity at same time | 1 | 1 | 2 |
| Temperature range | 65K–500K (extendable to 800K) | ||
| Temperature accuracy | ±0.1K | ||
Additional Parameters
- Number of measurement leads: 8 (expandable).
- Lead material: four-color phosphor bronze low-temperature wire.
- Sample size: standard ≤30mm × 30mm.
- Test connector: 8-core aviation plug (optional BNC, SMA interfaces).
- Window material: fused quartz or optional ZnSe, KBr, TPX according to wavelength requirements.
- Quick clamp vacuum cover design for easy sample replacement.

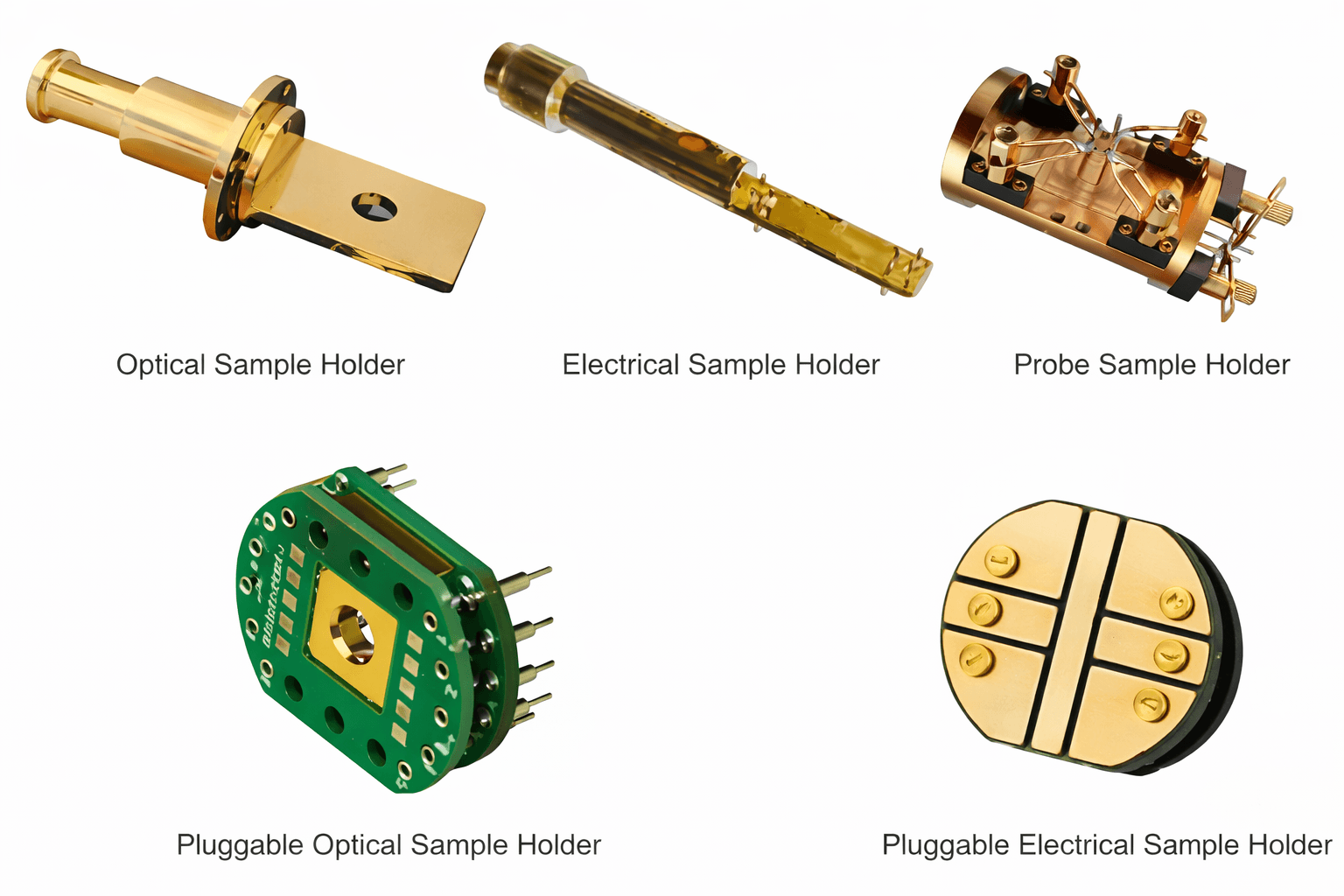

- Optional sample holders: electrical, optical, probe type and plug-in type fixtures.
- Applications: variable temperature testing, magnetic field testing and optical experiments.
- Other types available: atmosphere type and continuous flow type cryostats.
- Custom non-standard systems available on request.

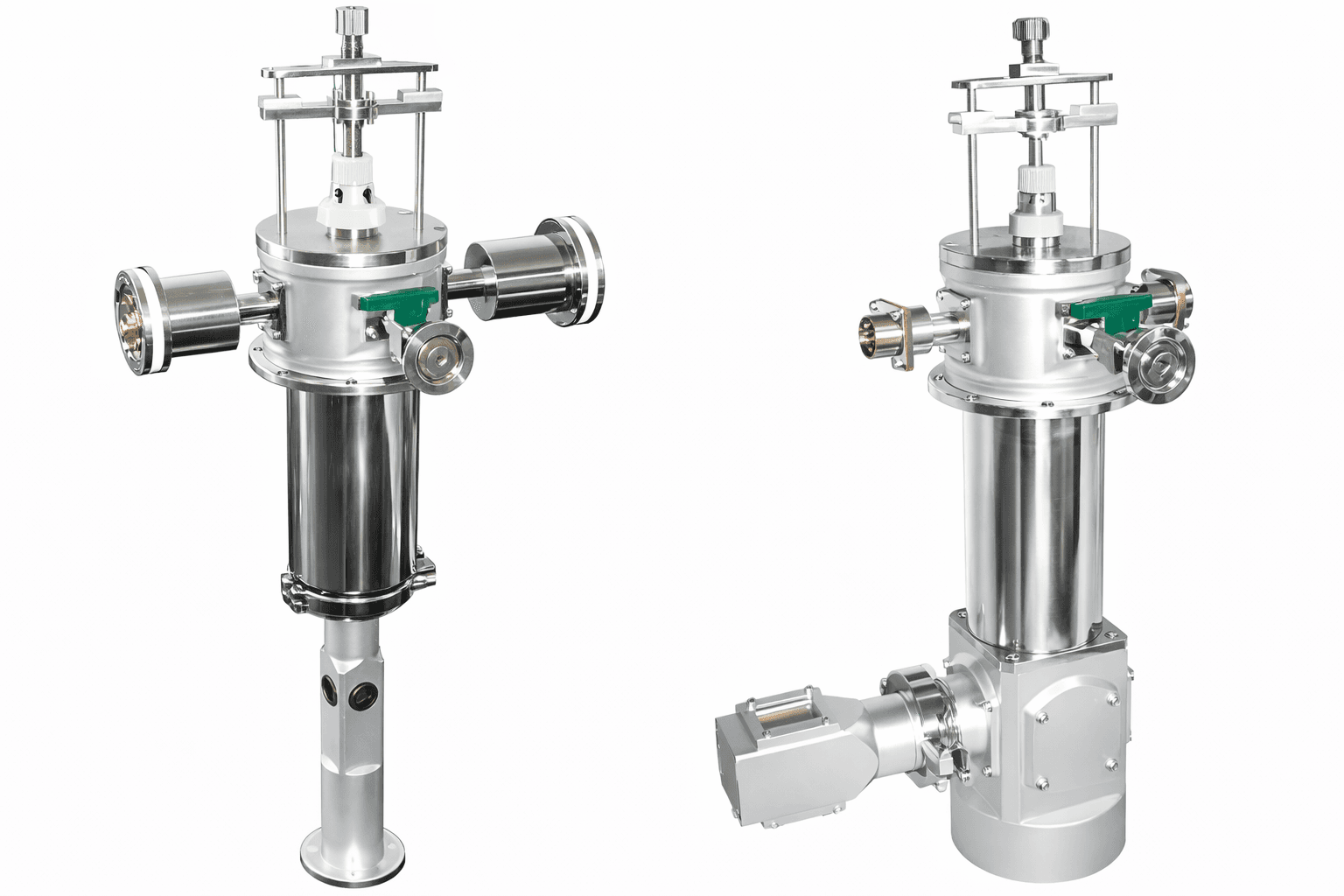

System Images
